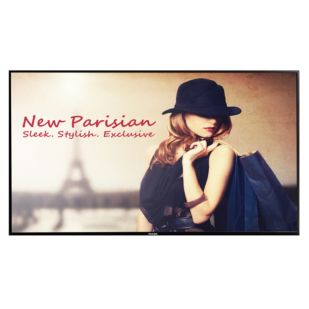

    Signage Solutions D-Line Display

    55BDL4150D/75

    Say more

    Make it stand out with a fast Philips D-Line Professional 4K UHD display. Philips superb picture quality ensures true colors and intense contrast. You can effortlessly display content from multiple sources on a single screen.

    Signage Solutions D-Line Display

    Similar products

    See all D-Line series

    Make it a bundle and save Make it a bundle and get 1 item for free

    All your needs covered in one purchase

    Bundle price

    Skip this

    Choose one of the following: Choose one of the following products:

    Add accessories

    This product
    Signage Solutions
    - {discount-value}

    Signage Solutions

    D-Line Display

    Total

    recurring payment

    Say more

    Smart, fast 24/7 display.

    • 55"
    • Powered by Android
    • 500cd/m²
    Save and play content with internal memory

    Save and play content with internal memory

    Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

    Keep your content up and running with FailOver

    Keep your content up and running with FailOver

    Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

    SmartPower for energy saving

    SmartPower for energy saving

    The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

    CMND: Take control of your displays

    CMND: Take control of your displays

    A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

    Manage settings of multiple displays with CMND & Control

    Manage settings of multiple displays with CMND & Control

    With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.

    Create and update content with CMND & Create

    Create and update content with CMND & Create

    Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.

    Connect and control your content via the cloud

    Connect and control your content via the cloud

    Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists

    Android: Run your own app or choose your favorite app to run

    WIth Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.

    Enhance your connectivity with an integrated mPCIe slot.

    With an integrated PCI slot, you can connect a WiFI/bluetooth or 4G LTE module, allowing for even greater communication with the display. Machine to machine communication is also enhanced, with numerous configurations available for customers to use, such as the ability to expand product features or signal-handling capability.

    Ensure your content is running with automatic screenshots

    Content is king, and with the automatic screenshot feauture, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.

    Technical Specifications

    • Picture/Display

      Diagonal screen size (metric)
      138.8  cm
      Diagonal screen size (inch)
      54.64  inch
      Aspect ratio
      16:9
      Panel resolution
      3840 x 2160
      Pixel pitch
      0.315 [mm] × 0.315 [mm]
      Optimum resolution
      3840 x 2160 @ 60Hz
      Brightness
      500  cd/m²
      Display colors
      1.07 Billion
      Contrast ratio (typical)
      1100:1
      Response time (typical)
      8  ms
      Viewing angle (horizontal)
      178  degree
      Viewing angle (vertical)
      178  degree
      Operating system
      Android 7.1.2
    • Connectivity

      Audio output
      • 3.5mm jack
      • External speaker connection
      • SPDIF
      Video input
      • DisplayPort (1.2)
      • DVI-D
      • HDMI 2.0 (x3)
      • VGA (Analog D-Sub)
      Audio input
      3.5 mm jack
      Other connections
      • mPCIe
      • Micro USB (x1) (OTG)
      • USB 2.0
      • USB 3.0
      Video output
      DisplayPort 1.2 (x1)
      External control
      • RJ45
      • RS232C (in/out) 2.5 mm jack
      • IR (in/out) 3.5 mm jack
    • Convenience

      Placement
      • Landscape
      • Portrait
      Tiled Matrix
      Up to 10 x 15
      Screen saving functions
      Pixel Shift, Low Bright
      Keyboard control
      • Hidden
      • Lockable
      Signal loop through
      • IR Loopthrough
      • DisplayPort
      Network controllable
      • RJ45
      • RS232
    • Sound

      Built-in speakers
      2 x 10W RMS
    • Power

      Mains power
      100 ~ 240 VAC, 50 ~ 60 Hz
      Consumption (Typical)
      150  W
      Consumption (Max)
      211 W
      Standby power consumption
      0.5 W
    • Supported Display Resolution

      Computer formats
      • 1920 x 1080, 60Hz
      • 1366 x 768, 60Hz
      • 1360 x 768, 60Hz
      • 800 x 600, 56, 60, 72, 75Hz
      • 640 x 480, 60, 67, 72, 75Hz
      • 1024x768, 60,70Hz
      • 1152 x 864, 60, 70, 75Hz
      • 1152 x 900, 66Hz
      • 1280 x 720, 60,70Hz
      • 1280 x 768, 60Hz, 75Hz
      • 1280 x 800, 60,75Hz
      • 1280 x 960, 60Hz
      • 1280x1024, 60,67,75Hz
      • 1400 x 1050 ,60, 75Hz
      • 1440 x 1050, 60Hz
      • 1440 x 900, 60, 75Hz
      • 1600 x 1200, 60Hz
      • 1600 x 900, 60Hz
      • 1680 x 1050, 60Hz
      • 1920 x 1200, 60Hz
      • 3840 x 2160, 24,25,30,60Hz
      • 4096 x 2160, 24Hz
      • 640 x 350, 70Hz
      • 720 x 400, 70Hz
      • 832 x 624, 75Hz
      • 848 x 480, 60Hz
      • 960x720, 75Hz
      Video formats
      • 1080p, 50, 60Hz
      • 1080i, 50, 60Hz
      • 720p, 50, 60Hz
      • 576i, 50Hz
      • 576p, 50Hz
      • 480p, 60Hz
      • 480i, 60Hz
      • 4K x 2K, 50,60Hz
    • Dimensions

      Set Width
      1240.0  mm
      Product weight
      25  kg
      Set Height
      713.4  mm
      Set Depth
      64.4mm(wall mount) / 69.6mm(handle)  mm
      Set Width (inch)
      48.82  inch
      Set Height (inch)
      28.09  inch
      Wall Mount
      400 x 400 mm, M6
      Set Depth (inch)
      2.54 inch(wall mount) / 2.74 inch(handle)  inch
      Bezel width
      12.2mm(T); 12.7mm(/R/L); 15.8mm(B)
      Product weight (lb)
      55.11  lb
    • Operating conditions

      Altitude
      0 ~ 3000 m
      Temperature range (operation)
      0 ~ 40  °C
      MTBF
      50,000  hour(s)
      Temperature range (storage)
      -20 ~ 60  °C
      Humidity range (operation)[RH]
      20 ~ 80% (without condensation)
      Humidity range (storage) [RH]
      5 ~ 95% (without condensation)
    • Multimedia Applications

      USB Playback Video
      • MKV
      • MP4
      • MPEG
      • MPG
      • TS
      • VOB
      • AVI
      • DAT
      • FLV
      USB Playback Picture
      • BMP
      • JPEG
      • JPG
      • PNG
      USB Playback Audio
      • AAC
      • M4A
      • MP3
      • WMA
    • Internal Player

      CPU
      • Dual-Core Cortex-A72 @2GHz
      • Quad-Core Cortex-A53 @ 1.5GHz
      • RK3399
      GPU
      ARM Mali-T860 MP4
      Memory
      4GB DDR3
      Storage
      16GB EMMC
      Wifi
      • 2T2R
      • 802.11 ac/a/b/g/n
      • WCT07R2201
    • Accessories

      Included accessories
      • Remote Control
      • Batteries for remote control
      • Quick start guide
      • RS232 cable
      • AC Power Cord
      Included Accessories
      • Dipole antenna (x2)
      • IR sensor cable (1.8 m) (x1)
      • M2 Screw (x2)
      • M3 screw (x1)
      • Philips logo (x1)
      • RS232 Daisy chain cable (x1)
      • SD card cover (x1)
      Stand
      BM05922 (Optional)
    • Miscellaneous

      On-Screen Display Languages
      • English
      • French
      • German
      • Spanish
      • Polish
      • Turkish
      • Russian
      • Italian
      • Simplified Chinese
      • Traditional Chinese
      • Arabic
      • Japanese
      • Danish
      • Dutch
      • Finnish
      • Norwegian
      • Portuguese
      • Swedish
      Warranty
      3 year warranty
      Regulatory approvals
      • CE
      • UL/cUL
      • RoHS
      • BSMI
      • CB
      • J-Moss
      • PSE
      • VCCI
      • CU
      • EMC
      • EMF
      • EnergyStar 8.0
      • FCC, Class A
      • PSB

    What's in the box?

    Other items in the box

    • Remote Control
    • Batteries for remote control
    • Quick start guide
    • RS232 cable
    • AC Power Cord
