1

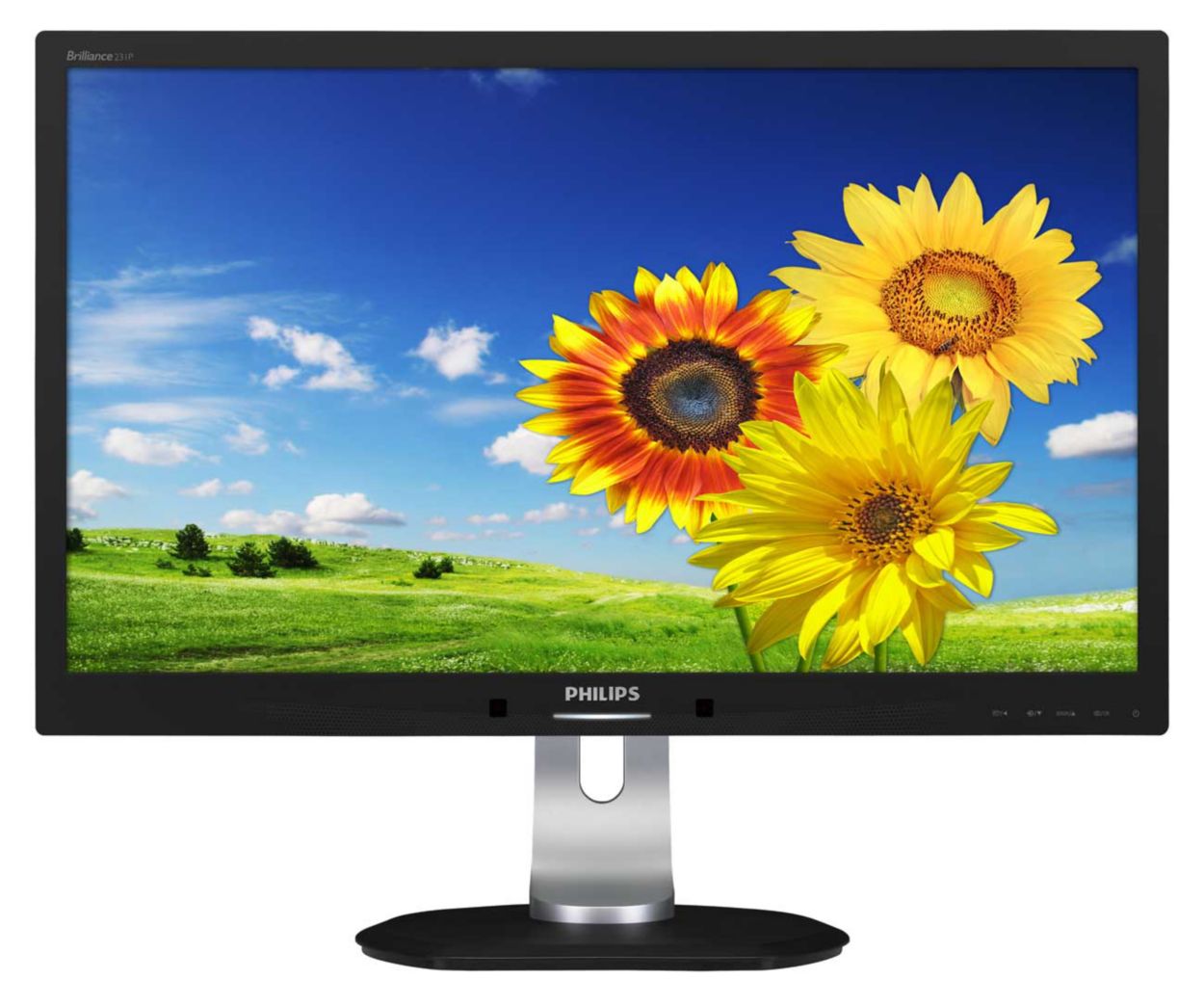

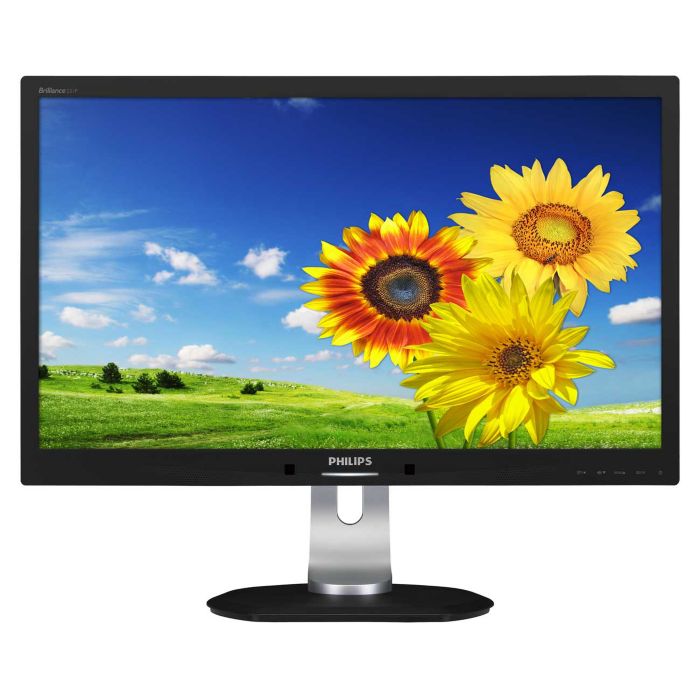

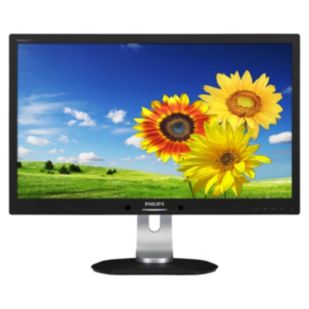

LCD monitor

231P4UPEB/75

LCD monitor

231P4UPEB/75

Simplicity with notebook docking display

This innovative notebook docking display with multimedia enables easy port replication. Now you can expand your viewing workspace, keep your peripherals connected, and access internet. All with a single SuperSpeed USB cable. See all benefits

Unfortunately this product is no longer available

LCD monitor

Simplicity with notebook docking display

This innovative notebook docking display with multimedia enables easy port replication. Now you can expand your viewing workspace, keep your peripherals connected, and access internet. All with a single SuperSpeed USB cable. See all benefits

Simplicity with notebook docking display

This innovative notebook docking display with multimedia enables easy port replication. Now you can expand your viewing workspace, keep your peripherals connected, and access internet. All with a single SuperSpeed USB cable. See all benefits

Unfortunately this product is no longer available

LCD monitor

Simplicity with notebook docking display

This innovative notebook docking display with multimedia enables easy port replication. Now you can expand your viewing workspace, keep your peripherals connected, and access internet. All with a single SuperSpeed USB cable. See all benefits

Register

Subscribe to our newsletter

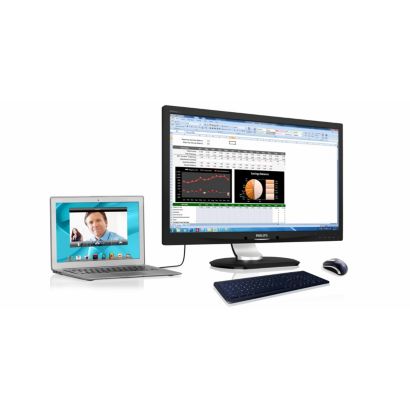

Simplicity with notebook docking display

expand view with single cable

  • Notebook docking display
  • 23" (58.4 cm)
Single USB 3.0 cable docks your notebook to the display

Single USB 3.0 cable docks your notebook to the display

This innovative large Philips display enables easy port replication for any notebook. Especially suitable for latest Ultra book type devices with limited connectors, this display with built-in USB 3.0 hub, Ethernet, and stereo speakers enables you to transmit video, audio, and connect to internet or intranet directly with a single cable USB connection. By this advanced USB 3.0 or USB 2.0 plug and play connection, you can now expand your desktop using both your NBPC and Philips display's real-estate without having to worry about cumbersome resolution adjustments or mess around with cables.

Access all peripherals and keyboard, mouse from the hub

Access all peripherals and keyboard, mouse from the hub

You can now connect optional full sized Keyboard and mouse to this innovative Philips display's USB hub to improve your productivity. Simply connect your Notebook to this display with a single USB cable, and you are ready to utilize the attached additional peripherals like external HDD, camera, USB drive along with Full HD video, Audio, and Internet functions. Should you prefer, you can of course still utilize your NBPC's keyboard and track pad as usual.

SmartErgoBase enables people-friendly ergonomic adjustments

SmartErgoBase enables people-friendly ergonomic adjustments

The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base's people-friendly height, swivel, tilt and rotation angle adjustments position the monitor for maximum comfort that can ease the physical strains of a long workday; cable management reduces cable clutter and keeps the workspace neat and professional.

PowerSensor saves up to 80% energy costs

PowerSensor saves up to 80% energy costs

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life

Low bezel-to-table height for maximum reading comfort

Low bezel-to-table height for maximum reading comfort

The Philips monitor, thanks to its advanced SmartErgoBase, can be lowered down almost to desk level for a comfortable viewing angle. Low bezel-to-table height is the perfect solution if you use bifocals, trifocals or progressive lens glasses for your computing work. Additionally, it allows for users with greatly different heights to use the monitor in their preferred angle and height settings, helping them reduce fatigue and strain.

65% post consumer recycled plastics with TCO Edge

TCO Edge certification is given to products which go beyond existing eco-labeling programs. Over and above standard TCO requirements, it further mandates that the product uses minimum 65% of post consumer recycled plastics, is energy efficient, uses minimal hazardous materials, has 100% recyclable packaging, and is designed for easy recycling amongst other requirements. You can rest assured that this Philips monitor is a cutting edge technology product which is best in class ICT, benefitting you and the planet while helping you make a responsible green IT purchase!

PVC-BFR free housing

This Philips monitor housing is free from brominated flame retardant and polyvinyl chloride (PVC-BFR free)

Technical Specifications

  • Picture/Display

    LCD panel type
    TFT-LCD
    Backlight type
    W-LED system
    Panel Size
    23 inch / 58.4 cm
    Effective viewing area
    509.18 x 286.41 mm
    Aspect ratio
    16:9
    Optimum resolution
    1920 x 1080 @ 60Hz
    Response time (typical)
    5  ms
    Brightness
    250  cd/m²
    Contrast ratio (typical)
    1,000:1
    SmartContrast
    20,000,000:1
    Pixel pitch
    0.265 x 0.265 mm
    Viewing angle
    • 170º (H) / 160º (V)
    • @ C/R > 10
    Picture enhancement
    SmartImage
    Display colors
    16.7 M
    Scanning Frequency
    30 -83 kHz (H) / 56 -75 Hz (V)
    sRGB
    Yes
  • Connectivity

    Signal Input
    VGA (Analog )
    Sync Input
    • Separate Sync (VGA only)
    • Sync on Green (VGA only)
    Audio (In/Out)
    • PC audio-in
    • Headphone out
  • USB Connectivity

    USB
    USB 2.0 x 1, USB 3.0 x 2
    Signal Input
    USB 3.0 upstream
    Audio In/Out
    through USB
    RJ45
    through USB, 1Gbps
    Microphone in
    through USB
    Headphone out
    through USB
  • Convenience

    Built-in Speakers
    1.5Wx2
    User convenience
    • SmartImage
    • Input
    • PowerSensor
    • Menu
    • Power On/Off
    Control software
    • SmartControl Premium(VGA only)
    • DisplayLink Graphics Software
    OSD Languages
    • English
    • French
    • German
    • Italian
    • Portuguese
    • Russian
    • Simplified Chinese
    • Spanish
    • Brazil Portuguese
    • Czech
    • Dutch
    • Finnish
    • Greek
    • Hungarian
    • Japanese
    • Korean
    • Polish
    • Swedish
    • Traditional Chinese
    • Turkish
    • Ukranian
    Other convenience
    • Kensington lock
    • VESA mount (100x100mm)
    Plug & Play Compatibility
    • DDC/CI (VGA only)
    • Mac OS X
    • sRGB
    • Windows 8/7/Vista/XP
  • Stand

    Height adjustment
    130  mm
    Pivot
    90 degree
    Swivel
    -65/65  degree
    Tilt
    -5/20  degree
  • Power

    ECO mode
    15.3 W (typ.)
    On mode
    26.2 W (typ.)
    Standby mode
    0.1 W
    Off mode
    Zero watts with Zero switch
    Power LED indicator
    • Operation - White
    • Standby mode- White (blinking)
    Power supply
    • 100-240VAC, 50-60Hz
    • Built-in
  • Dimensions

    Product with stand(max height)
    547 x 515 x 220  mm
    Product without stand (mm)
    547 x 343 x 60  mm
    Packaging in mm (WxHxD)
    600 x 400 x 263  mm
  • Weight

    Product with stand (kg)
    5.30  kg
    Product without stand (kg)
    3.10  kg
    Product with packaging (kg)
    7.60  kg
  • Operating conditions

    Temperature range (operation)
    0°C to 40°C  °C
    Temperature range (storage)
    -20°C to 60°C  °C
    Relative humidity
    20%-80  %
    Altitude
    Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
    MTBF
    30,000  hour(s)
  • Sustainability

    Environmental and energy
    • PowerSensor
    • TCO edge
    • RoHS
    Recyclable packaging material
    100  %
    Post consumer recycled plastic
    65%
    Specific Substances
    • PVC / BFR free housing
    • Mercury free
    • Lead free
  • Compliance and standards

    Regulatory Approvals
    • BSMI
    • CE Mark
    • FCC Class B
    • GOST
    • PSB
    • SASO
    • SEMKO
    • TCO 6.0
    • TUV Ergo
    • TUV/GS
    • UL/cUL
    • WEEE
  • Cabinet

    Front bezel
    Black
    Rear cover
    Black
    Foot
    Black
    Finish
    Texture
